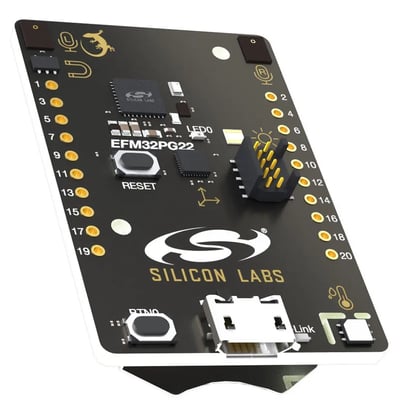

Unveiling the Versatility: Exploring the Silicon Labs PG22 Dev Kit (BRD2503A)
The Silicon Labs PG22 Dev Kit (BRD2503A) is an invaluable tool for developers seeking to familiarize themselves with the EFM32PG22 microcontrollers. This kit offers a range of features and capabilities designed to empower technical exploration and application development.
Technical Insights of EFM32PG22 MCU
The heart of the PG22 Dev Kit is the EFM32PG22 microcontroller, capable of operating at 76.8 MHz, with 512 kB flash memory and 32 kB of RAM. This component serves as the processing core for various applications.

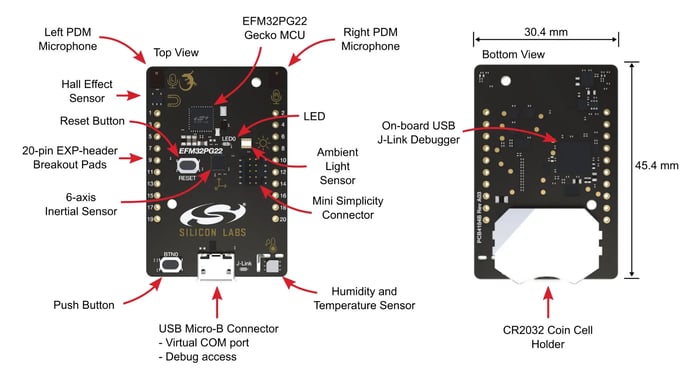

Sensor Suite
The kit includes four environmental sensors:- Si7021 Relative Humidity and Temperature Sensor
- Si7210 Hall Effect Sensor
- Ambient Light Sensor (Vishay VEML6035)
- 6-Axis Inertial Sensor (TDK InvenSense ICM-20648)
- Two PDM Microphones
These sensors provide essential data for applications requiring environmental monitoring and motion sensing.
Audio Capabilities
Stereo PDM microphones (Knowles SPK0641HT4H-1) are available, delivering audio input for voice and sound-based applications.
Storage Solution
An 8 Mbit SPI flash (Macronix MX25R8035F) is embedded on the board, offering non-volatile memory for data storage.
User Interfaces
The kit includes one LED, one push button, and a reset button, providing essential user interaction elements for various applications.
Programming and Debugging
- J-Link Debugger: The on-board SEGGER J-Link debugger simplifies programming and debugging tasks and includes a USB virtual COM port for efficient communication with the target application.
- Simplicity Studio™ Support: The kit is fully supported in Simplicity Studio™, Silicon Labs' integrated development environment, offering a Board Support Package (BSP) for streamlined application development.
- Advanced Debugging: In-depth analysis is facilitated through the Mini Simplicity Connector, providing access to energy profiling and advanced debugging features.
Power Management
Peripherals on the PG22 Dev Kit are grouped into power domains, allowing dynamic control by the application code. This capability enables power conservation, extending the battery life of the device. The coin cell battery holder adds portability and makes it ideal for battery-operated applications.
External Hardware Integration
Connecting external hardware to the PG22 Dev Kit is made possible through the 20 breakout pads, exposing peripherals such as I2C, SPI, UART, and GPIOs. These pads follow the same pinout as the EXP headers on other Silicon Labs Starter Kits.
Flexible Power Options
The kit offers an automatic switchover between USB and battery power, enhancing flexibility and making it suitable for a range of energy-efficient and portable applications.
Coin Cell Holder
With a CR2032 coin cell holder, the kit can operate independently, making it suitable for remote, low-power applications.
In Conclusion
The Silicon Labs PG22 Dev Kit provides a comprehensive platform for technical exploration and application development. Whether you're working on sensor-based applications, audio projects, or IoT devices, this kit offers the necessary tools and resources to facilitate your technical journey.
