Designed for Next-Generation Performance
See more of your signal
Highlights
View More Signal Detail

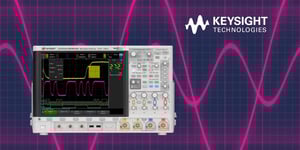

The Keysight InfiniiVision 4000 X-Series oscilloscopes are designed for next-generation performance, delivering waveform update rates 20 times faster than the competition. A large 12.1" capacitive touch screen combined with innovative hardware-based zone touch triggering makes it easy to capture and view your signals. With the 4000 X-Series, you can be confident that you will catch even the rarest glitches and see more.
- The PathWave BenchVue oscilloscope software for remote control, data logging and automated testing
- Achieve bandwidths from 200 MHz to 1.5 GHz
- See the most signal detail with 1,000,000 waveforms/second update rate
- Isolate signals in seconds with zone-touch triggering
- Test quickly with simplified operation and an intuitive user interface enabled by a large 12.1" capacitive touch screen
- Decode serial buses faster with hardware-based serial analysis options
Key Specifications
Bandwidth 200 MHz to 1.5 GHz Channels 2 or 4 analog +16 digital (MSO models)
Max Sample Rate 5 GSa/s Waveform Update Rate 1,000,000 wvfm/sec
Max Memory Depth 4 M points
Want to see more specifications?
Measure More Efficiently
A large 12.1" touchscreen combined with a host of advanced features gives you greater insight:
- Turn the most advanced triggering into a simple step with zone touch triggering. Simply draw a box on the screen with your finger
- Get more from your oscilloscopes with 7-in-1 instrument integration - oscilloscope, frequency response analyser (Bode plots), logic analyser / mixed-signal oscilloscope (MSO), protocol analyser, dual WaveGen (arbitrary waveform generator), voltmeter and frequency counter
- Catch the rarest of glitches with a 1,000,000 waveforms/second update rate
Automate tests and collect data with standard PathWave BenchVue oscilloscope software
PathWave BenchVue Oscilloscopes Software from Keysight
Intuitively control your oscilloscopes, capture screenshots, and log data measurements for more efficient analysis.
- Connect and control your scopes from the cloud.
- Export results in three clicks to popular tools such as MATLAB, Microsoft Excel or Word for documentation or further analysis.
- Visualize multiple types of instrument measurements simultaneously.
- Quickly create automated test sequences with minimal instrument knowledge.
- Receive a KeysightCare software support subscription and licence with every new instrument purchase.
Find the Model That's Right for You
