A window into the intricate interactions of your complex designs
The Keysight Infiniium MXR-Series oscilloscope is a window into the intricate interactions of your complex designs. Offering illuminating views of all crucial signals, the Infiniium MXR-Series helps you go from symptom to resolution in minutes instead of hours. See More, Do More, Save Time. And it has both 4-channel and 8-channel models!
While the Infiniium S-Series is an outstanding general-purpose oscilloscope, the new Infiniium MXR-Series combines the best signal integrity and capabilities of our industry-first technology in our advanced high-performance UXR-Series scope with the instrument integration and speed of our InfiniiVision scopes. This makes the Infiniium MXR-Series the best scope from 500 MHz to 6 GHz in the industry.

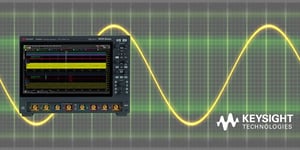

Infiniium MXR-Series Oscilloscopes
MXR-Series Industry Firsts
- First and only scope to support >2 GHz on 8 channels
- Upgrade from 4 to 8-channels
- Always on update rate > 200,000 wfm/s
- RTSA – Real-Time Spectrum Analysis in an oscilloscope
- Keysight Fault Hunter analysis application
- Fully Upgradeable, no exceptions
Future Proof Your MXR-Series – Upgrade
- From 4-channels to 8-channels
- Bandwidth from 500 MHz to 6 GHz (license key upgrade)
- Add capture and analysis memory
- Extensive protocol decodes and compliance applications
- Full compliment of probes
Infiniium MXR-Series Specifications
- Channels: 4 or 8 analog, 16 digital (optional)
- Bandwidth: 500 MHz to 6 GHz
- Sample rate: 16 GSa/s
- Memory: 200 Mpts/ch to 400 Mpts/ch
- Resolution: 10 bits, up to 16 with high-res
- Effective bits: 8.2 @ 500 MHz, 6.8 @ 6 GHz
- Noise (1 mV/div): 63 µV @ 500 MHz, 193 µV @ 6 GHz
- Triggering speed: >200,000 wfm/s
- Eye diagram speed: >750,000 UI/s
The MXR-Series has Much More Test Capability
- 8 analog channels
- New Fault Hunter
- 8 instruments in 1
- Digital oscilloscope
- Logic Analyzer
- Protocol Analyzer
- New Digital Voltmeter
- New 10-digit counter
- New Arbitrary Waveform Generator
- New Frequency Response Analyzer
- New RTSA – Real-Time Spectrum Analyzer

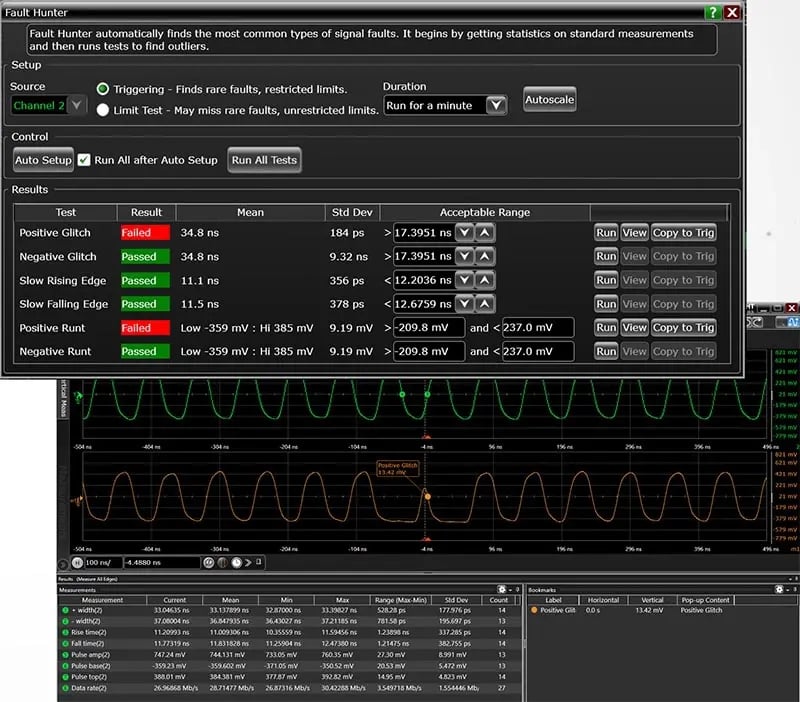

New Infiniium Fault Hunter
Find signal faults faster than ever before!
- ALL NEW Fault Hunter automatically finds and highlights common signal anomalies
- Auto Setup
- View button to see waveform anomaly
- Analyze
- Glitches
- Slow rising and falling edges
- Positive and Negative Runts
- Display: Mean and Std Dev. Results
